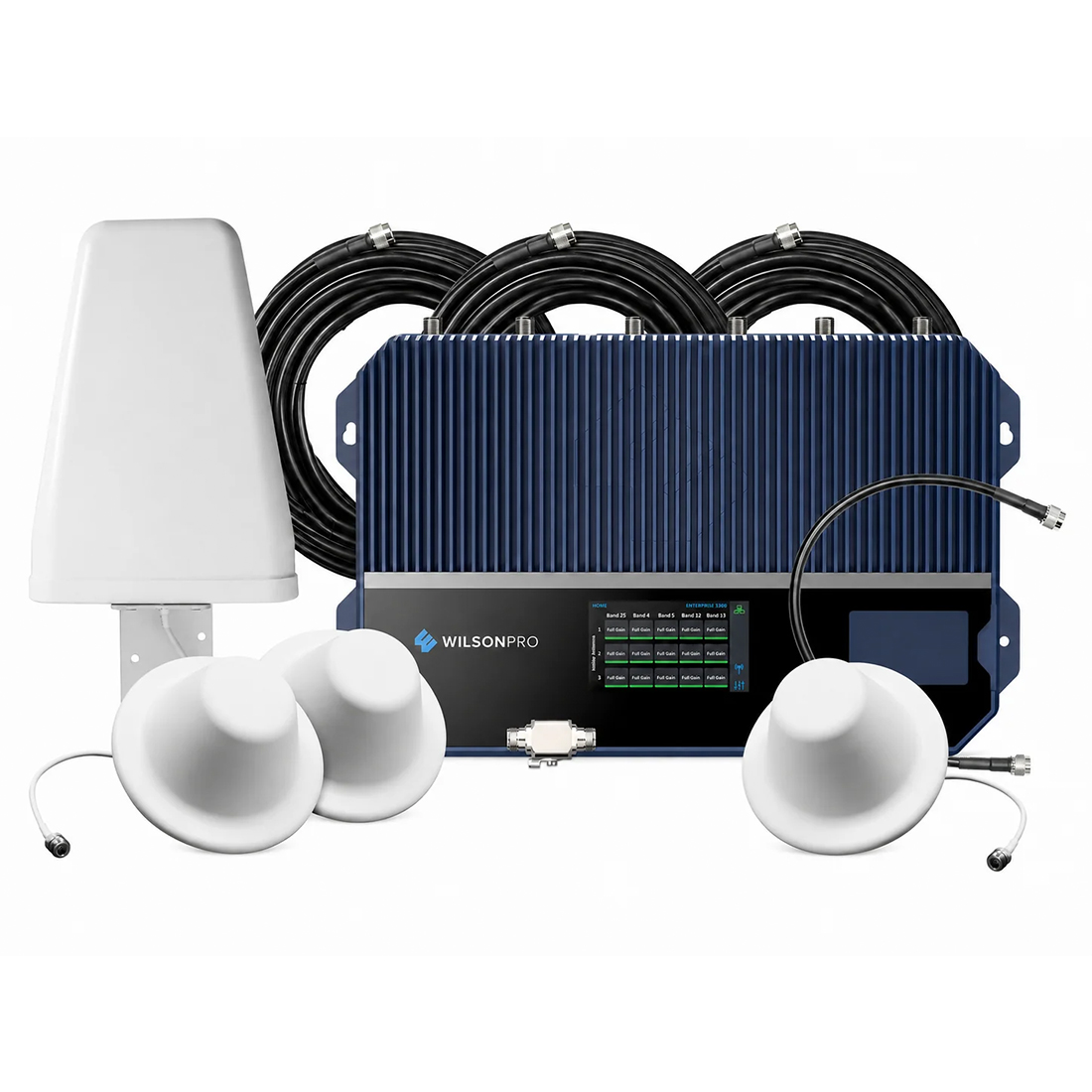

Wilson Enterprise 3300 Wall-Mount Kit

Name: Wilson Enterprise 3300 Wall-Mount Kit
SKU: 464052
Availability: InStock

Cover three separate areas of your building from one amplifier, with multi-tower targeting for carriers in different directions.

MSRP: $5997.00

Manufacturer: WilsonPro

SKU: 464052

Three outdoor antenna ports with Multi-Tower Targeting. Common mode is the default and uses one donor antenna, while split mode uses up to three donor antennas aimed at different carrier towers, so carriers coming from opposite directions each get a strong source to work from.
Three independently controlled indoor antenna ports, so one amplifier covers three separate zones instead of one broadcast point trying to reach the whole building.
70 dB max gain, up to 26 dBm uplink power, and 17 dBm downlink power per band per port. The uplink number is what pushes your phone's signal back out to a distant tower, and the downlink number is the strength each zone broadcasts at.
Wideband architecture amplifies every supported band and channel simultaneously, with support for carrier aggregation, so no one sets it up one carrier at a time and compatible phones can use the combined channels their network offers.
XDR, or Extended Dynamic Range, automatically adjusts gain when the outside signal is strong, so the system keeps working instead of shutting itself down near a tower.
Cellular Network Scanning with a 4.3 inch color LCD touchscreen, giving real time signal strength and signal quality readings for major US and Canada carriers measured at the indoor antenna ports and displayed right on the unit.
WilsonPro Cloud remote monitoring over wired Ethernet, on a wall mount unit with every port on top, which keeps the install tidy in a back room or an equipment closet.

Impedance	50 Ohm
Gain (Up/Down)	70dB / 70dB
Max Coverage	Up to 75,000 sq ft
Frequencies Supported	700MHz, 800MHz, 1900MHz, 1700/2100MHz
Antenna Type	1x Outside - Directional 3x Inside - Omnidirectional
Power Requirements	120V AC 0.5A
Specific Frequencies Supported	698 - 716 MHz / 728 - 746 MHz, 776 - 787 MHz / 746 - 757 MHz 824 - 849 MHz / 869 - 894 MHz 1710 - 1755 MHz / 2110 - 2155 MHz 1850 - 1915 MHz / 1930 - 1995 MHz
