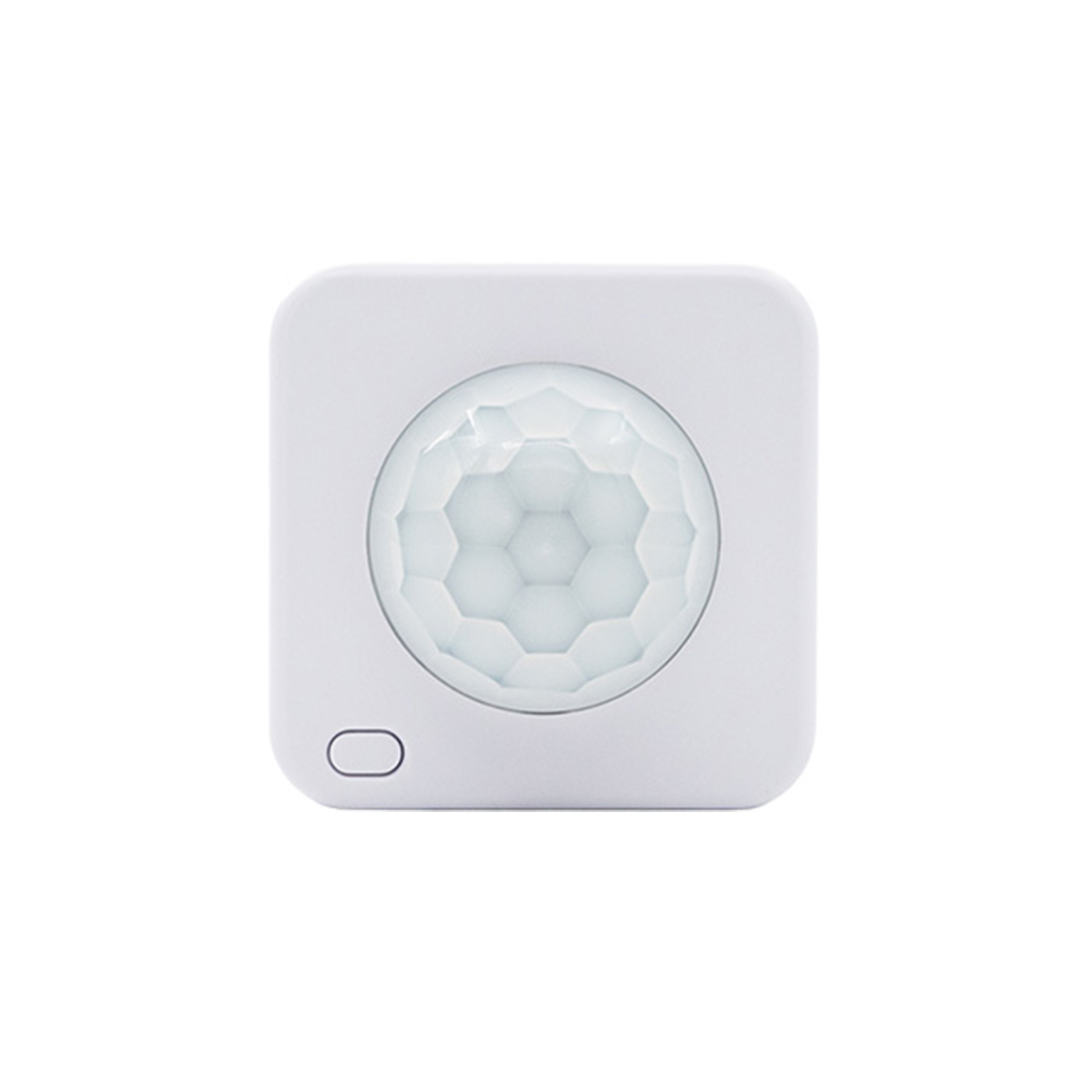

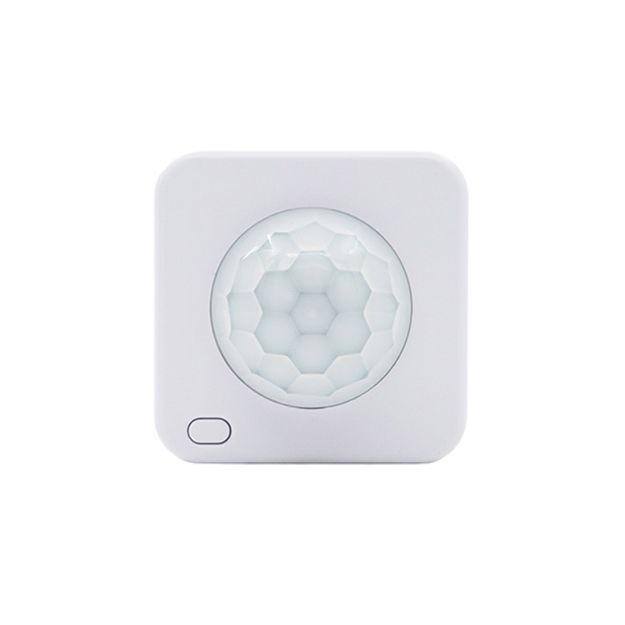

Shelly BLU Motion ZB

A compact, battery-powered motion and light sensor that detects human movement via PIR and measures ambient light with configurable thresholds to enable smart automations.
MSRP: $25.99
Manufacturer: Shelly Products
SKU: 3800238072674

Features

  • Dual Connectivity: Zigbee 3.0 (via hubs) and Bluetooth (via BTHome)
  • PIR motion detection with adjustable sensitivity for reliable movement detection
  • Beacon mode with continuous status updates every 30 seconds
  • Battery included with up to 5 years of life (CR2477)
  • Built-in LUX sensor with configurable brightness levels (dark, twilight, bright)
  • Configurable LED indication for optional visual feedback
  • BTHome support for integration with Shelly and compatible platforms
  • Wire-free installation with double-sided adhesive for easy wall or ceiling placement
  • AES encryption (CCM mode) for secure communication
  • Compatible with Shelly Plus, Pro, and Gen3/Gen4 devices, Zigbee 3.0 hubs, and platforms like Home Assistant, and Shelly Smart Control app

Specs

Power supply Battery
Battery type 1x 3 V CR2477 battery (included)
Battery life 5 years
PIR Yes
Light sensor Yes
Bluetooth Protocol: 5 (LE)
RF band: 2400 - 2483.5 MHz
Max. RF power: < 8 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee Protocol: 802.15.4
RF bands: 2405 to 2480 MHz
Max. RF power: < 8 dBm
Range: Up to 10 m / 33 ft indoors and 30 meters / 100 ft outdoors (Depends on local conditions)
CPU EFR32MG27
Flash 768 kB
Mounting Flat surface
Shell material Plastic
Encryption AES encryption (CCM mode)
Beacon mode Yes
Ambient working temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH



Dimensions

HxWxD Sensor only: 1.10" x 1.46" x 1.46"
Sensor with mount: 1.10" x 1.73" x 1.65"
Weight Sensor only: 1.02 oz
Sensor with mount: 1.16 oz



Product Files
MANUALS

Features

  • Dual Connectivity: Zigbee 3.0 (via hubs) and Bluetooth (via BTHome)
  • PIR motion detection with adjustable sensitivity for reliable movement detection
  • Beacon mode with continuous status updates every 30 seconds
  • Battery included with up to 5 years of life (CR2477)
  • Built-in LUX sensor with configurable brightness levels (dark, twilight, bright)
  • Configurable LED indication for optional visual feedback
  • BTHome support for integration with Shelly and compatible platforms
  • Wire-free installation with double-sided adhesive for easy wall or ceiling placement
  • AES encryption (CCM mode) for secure communication
  • Compatible with Shelly Plus, Pro, and Gen3/Gen4 devices, Zigbee 3.0 hubs, and platforms like Home Assistant, and Shelly Smart Control app
