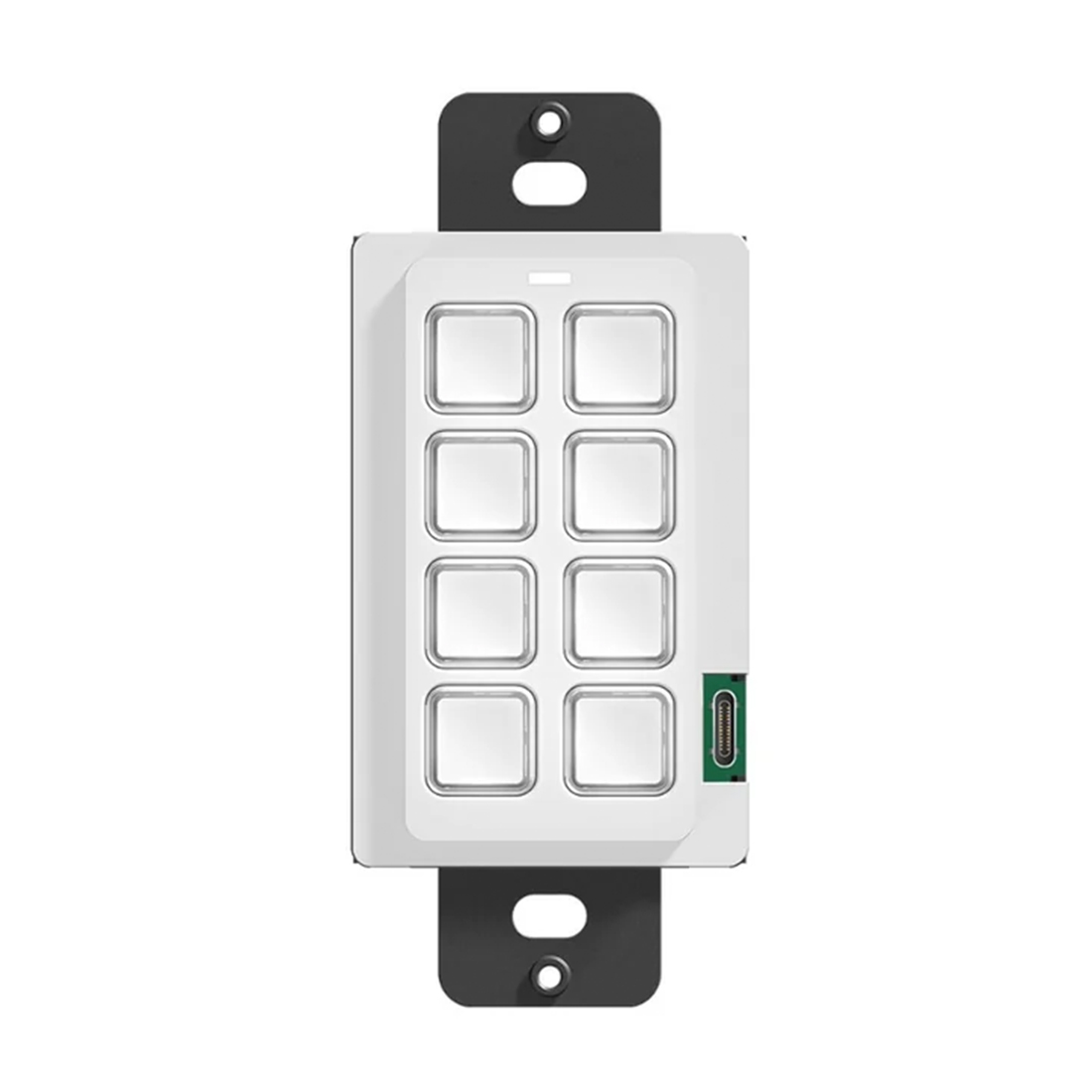

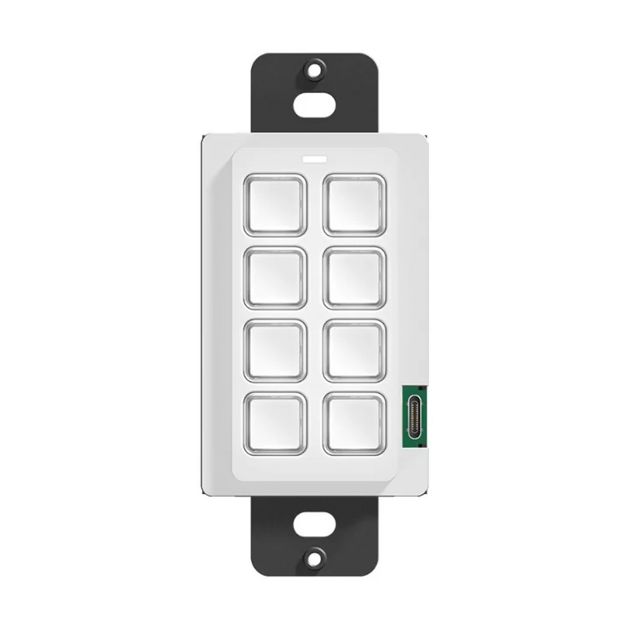

RTI 8-Button POE Keypad Controller

The KP-8 keypad is the perfect addition to any RTI control system for fast and convenient control of music, lights, shades, and other devices or systems. With eight fully programmable buttons, the KP-8 keypad provides intuitive two-way feedback via configurable backlight colors for each button.
MSRP: $327.00
Manufacturer: RTI
SKU: RTI-KP8

Features

  • 8 buttons provide quick access to control functions such as lights, shades, music, and audio/video source selection.
  • The flush-mount keypad design enables easy control of frequent home or business activities.
  • Use the existing standard home or corporate network infrastructure to connect the KP-8 keypad to the RTI processor.
  • Use any PoE network switch to power the KP-8 keypad over the same network cable that runs control communication with the RTI processor.
  • Intuitive control is elevated with status feedback via the programmable button backlight colors.
  • Adjusts the backlight brightness automatically depending on the ambient light.
  • Custom Engraved Keypad Buttons. For an elevated look and even more intuitive control experience, use RTI Laser Shark TM engraving service to customize the key caps with text and graphics.

What's in the box

  • KP-8 In-Wall Keypad Controller
  • Black and White keypad frames (2)
  • Black and White Keycap Label Kits (2)
  • Free Laser Shark engraving (1), use device's serial number for order code in the Laser Shark Software
  • Screws (2)

Specs

Power PoE IEEE802.3af
Backlights RGB LED - 16 programmable colors
Control Port 10/100 BaseT with Power over Ethernet
Total System Memory 512k Bytes Flash (non-volatile) memory
Macro Capability Macro capability on every button
Communications USB Type C programming port
Enclosure Formed steel, black powder coat
Keypad Frame High-impact molded ABS plastic, white
Mounting US standard single-gang box
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)



Dimensions

(H x W x D) 4.1" x 1.8" x 1.7"
Front Plate (H x W) (Purchased separately) 4.6" x 2.75"
Installation Cut-Out (H x W) 2.8" x 1.8"
Total Depth in Wall 1.37" plus cables
Weight 4 oz



Product Files
SPEC SHEETS
MANUALS

Features

  • 8 buttons provide quick access to control functions such as lights, shades, music, and audio/video source selection.
  • The flush-mount keypad design enables easy control of frequent home or business activities.
  • Use the existing standard home or corporate network infrastructure to connect the KP-8 keypad to the RTI processor.
  • Use any PoE network switch to power the KP-8 keypad over the same network cable that runs control communication with the RTI processor.
  • Intuitive control is elevated with status feedback via the programmable button backlight colors.
  • Adjusts the backlight brightness automatically depending on the ambient light.
  • Custom Engraved Keypad Buttons. For an elevated look and even more intuitive control experience, use RTI Laser Shark TM engraving service to customize the key caps with text and graphics.

What's in the box

  • KP-8 In-Wall Keypad Controller
  • Black and White keypad frames (2)
  • Black and White Keycap Label Kits (2)
  • Free Laser Shark engraving (1), use device's serial number for order code in the Laser Shark Software
  • Screws (2)
